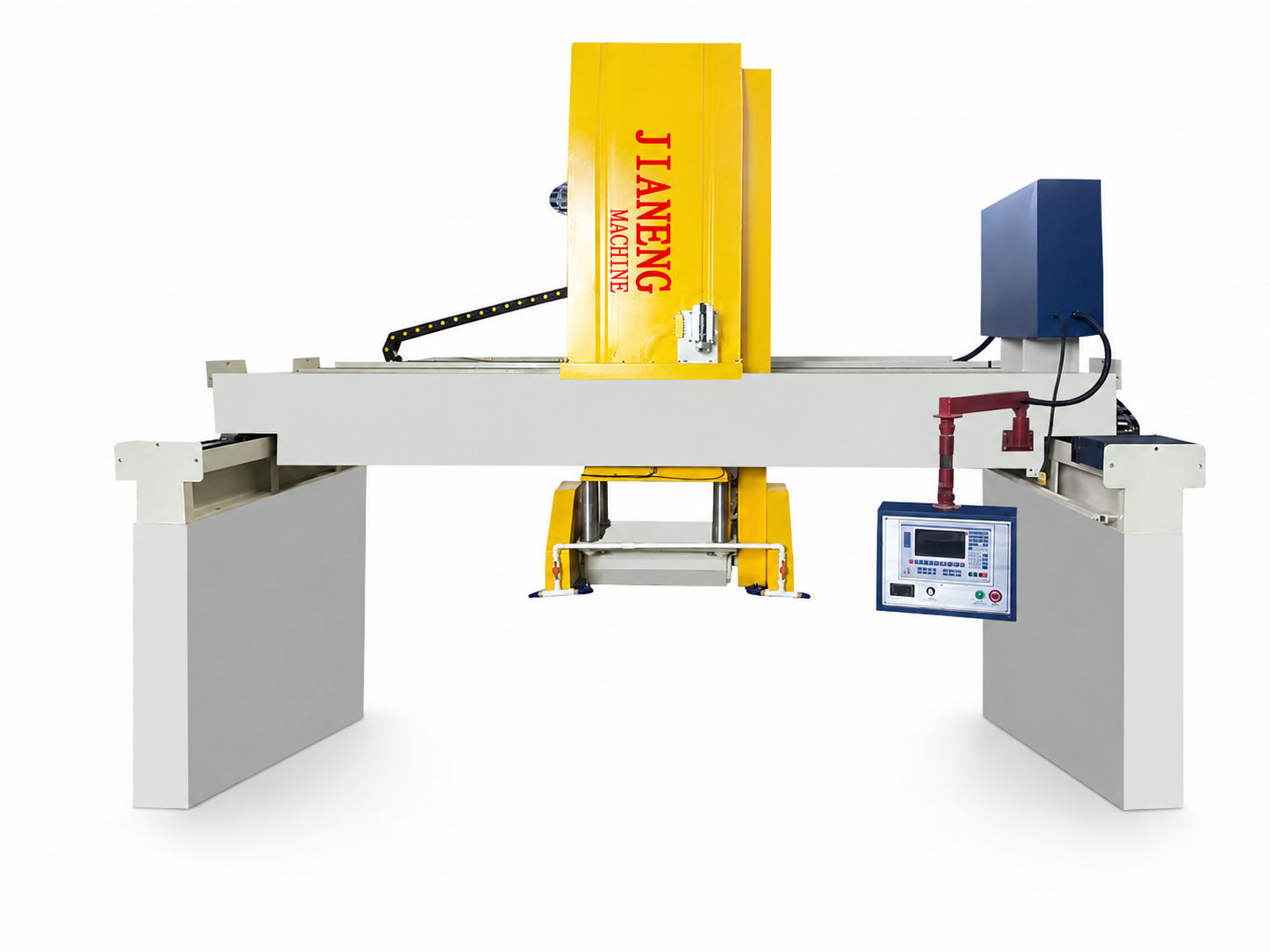

Double Beam CNC Line Copying Machine（No pre-grinding required）
Description
This machine is controlled by a two-axis CNC system and features a bridge-type structure. The lifting of the machine head adopts a guide pillar + copper sleeve assembly, combined with linear guides and ball screws, offering advantages such as high efficiency, high precision, and high stability. The system includes functions such as rough cutting, fine cutting, and fine milling, and is specifically designed for processing stone materials including moldings, square balusters, and special-shaped curbstones, as well as for backing/foundation work.
| Parameter | Unit | Value |
|---|---|---|
| Model | / | JNLC-3800-A |
| Blade diameter | mm | Φ400–600 |
| Spindle quantity | PCS | 1 spindle (2 blades) |
| Lifting stroke | MM | 600 |
| Processing length | MM | 3000 |
| Table size | MM | 1800×3000×2 pcs |
| Main motor power | KW | 18.5 / 22 (Optional) |
| Total power | KW | 24.5 / 28 (Optional) |
| Y-axis transmission structure | / | Linear guide |
| Y-axis transmission mode | / | Single Y-axis drive |
| Dimension (L×W×H) | MM | 5300×5300×3600 |
| Water consumption | m³/h | 6 |
